Qingling’s manufactures these tapes with polyimide film backing and uses various adhesives, depending on temperature requirements. They exhibit good solvent resistance and have excellent mechanical properties.

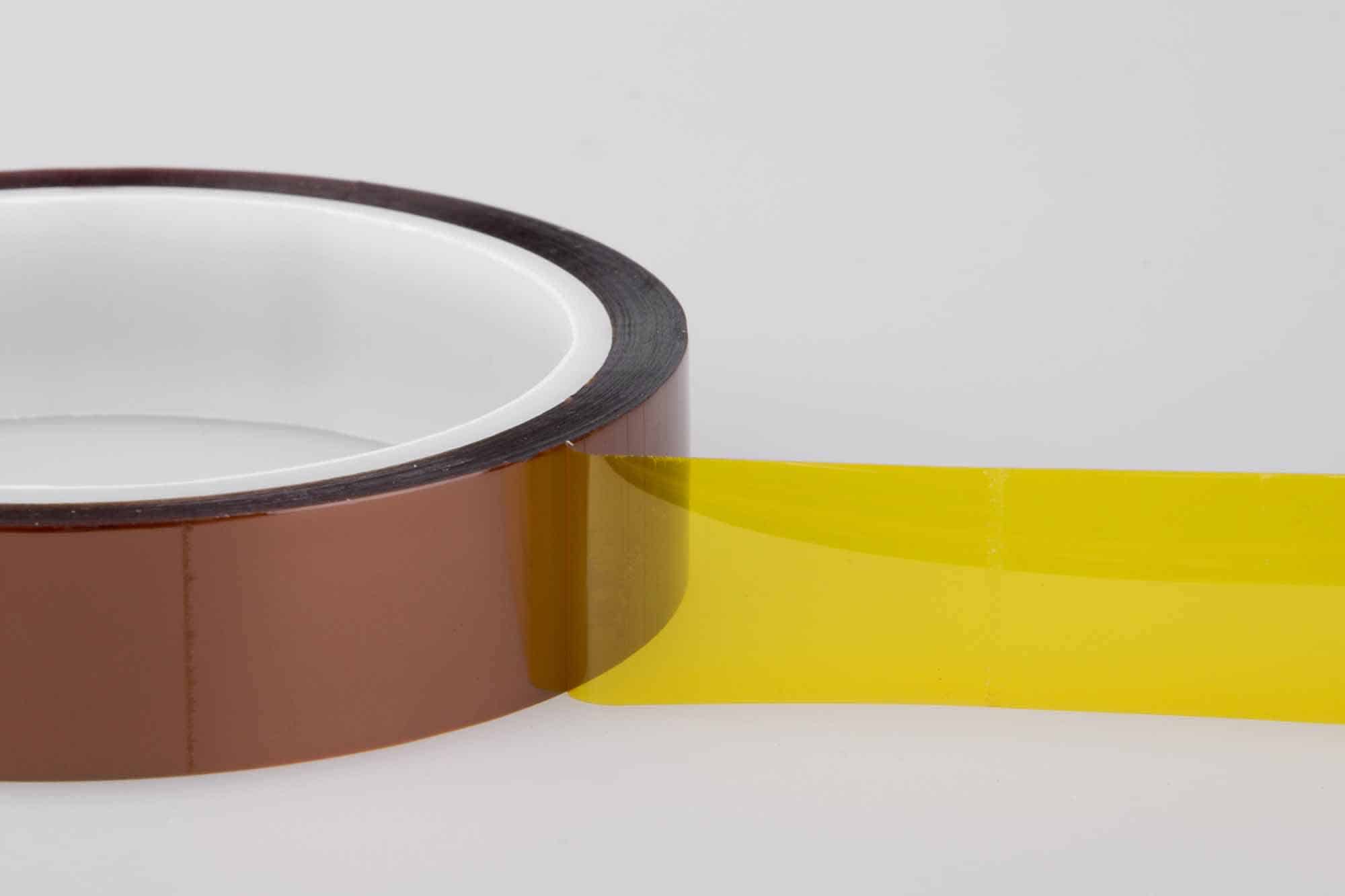

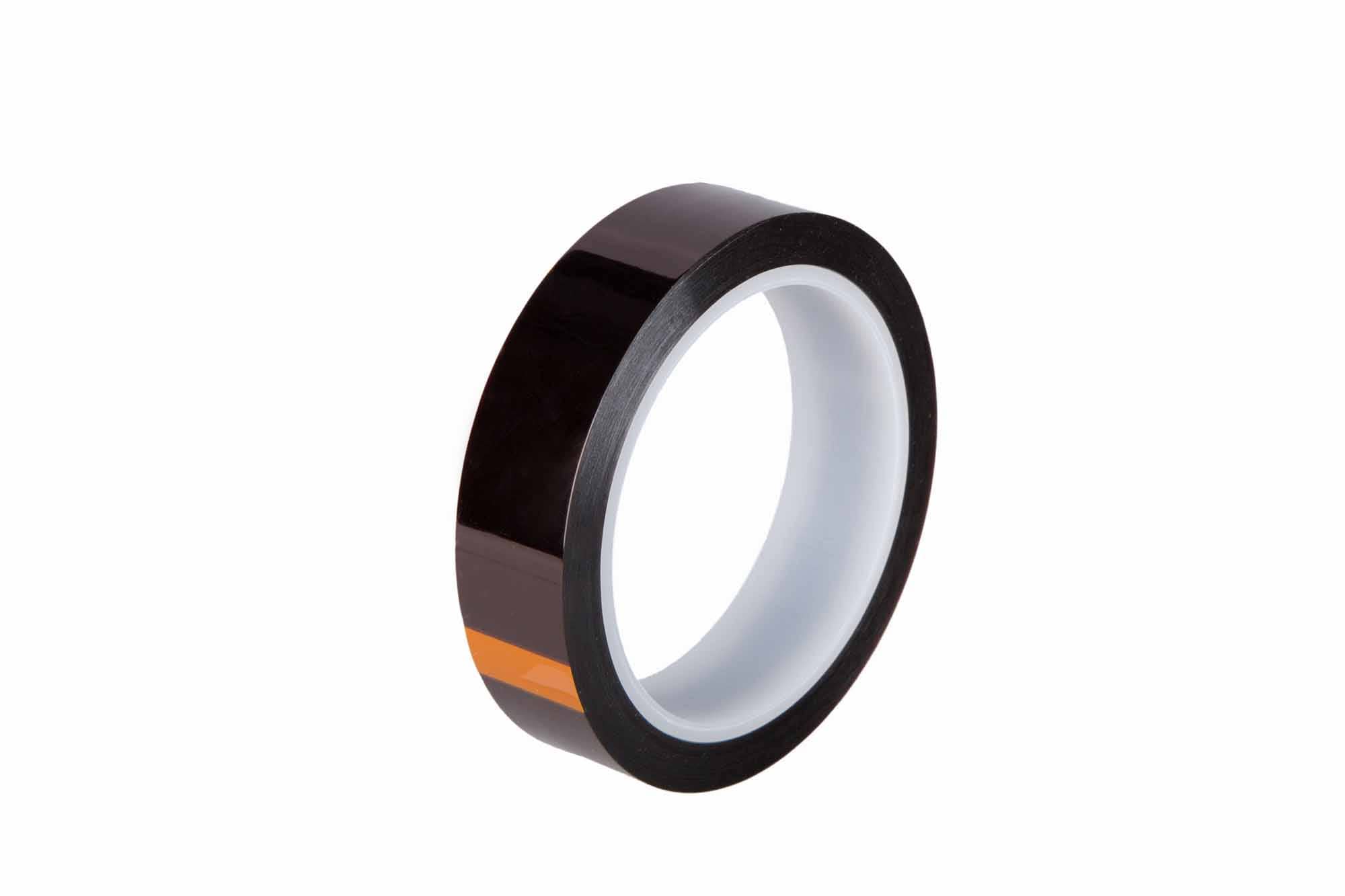

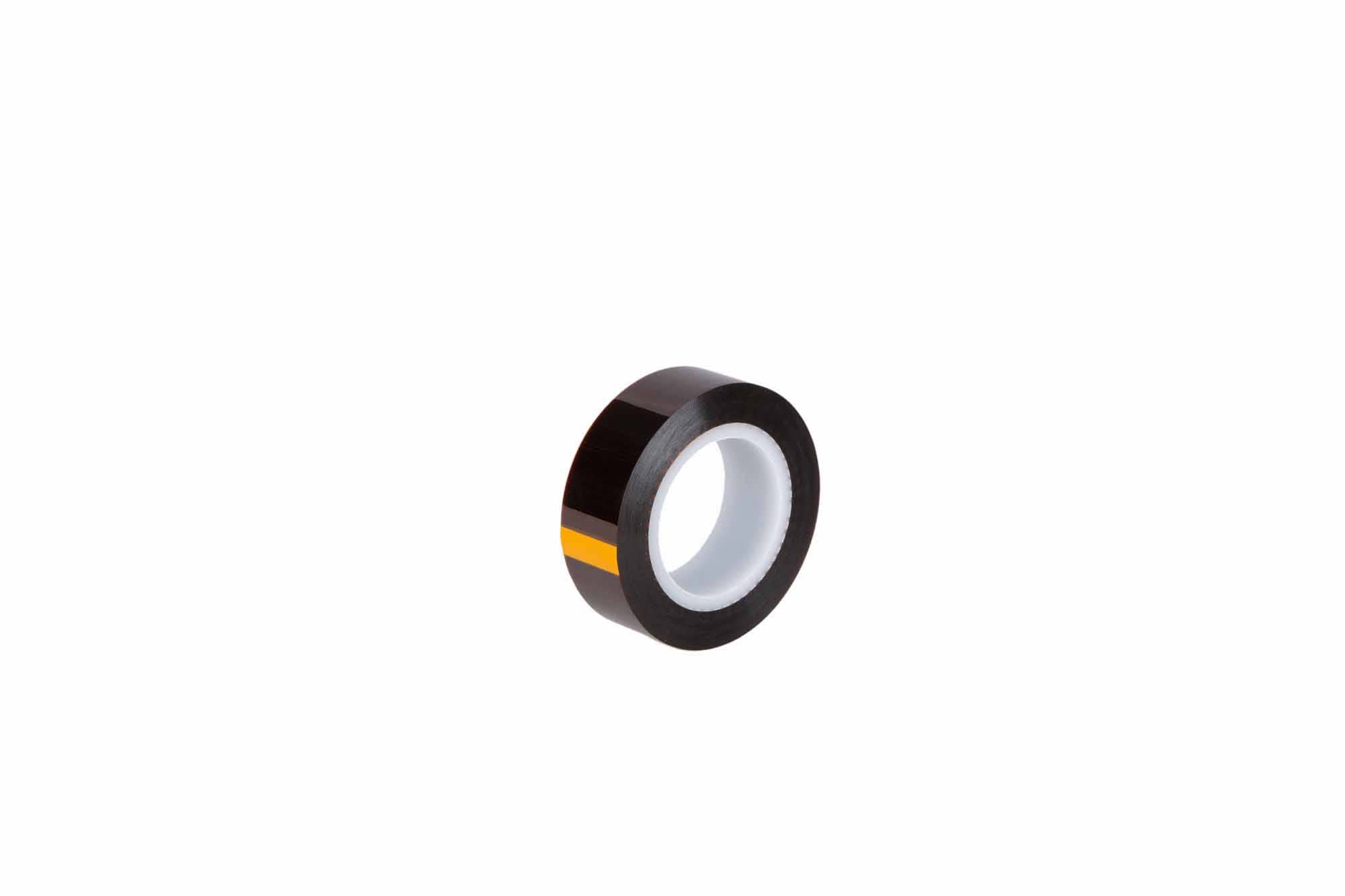

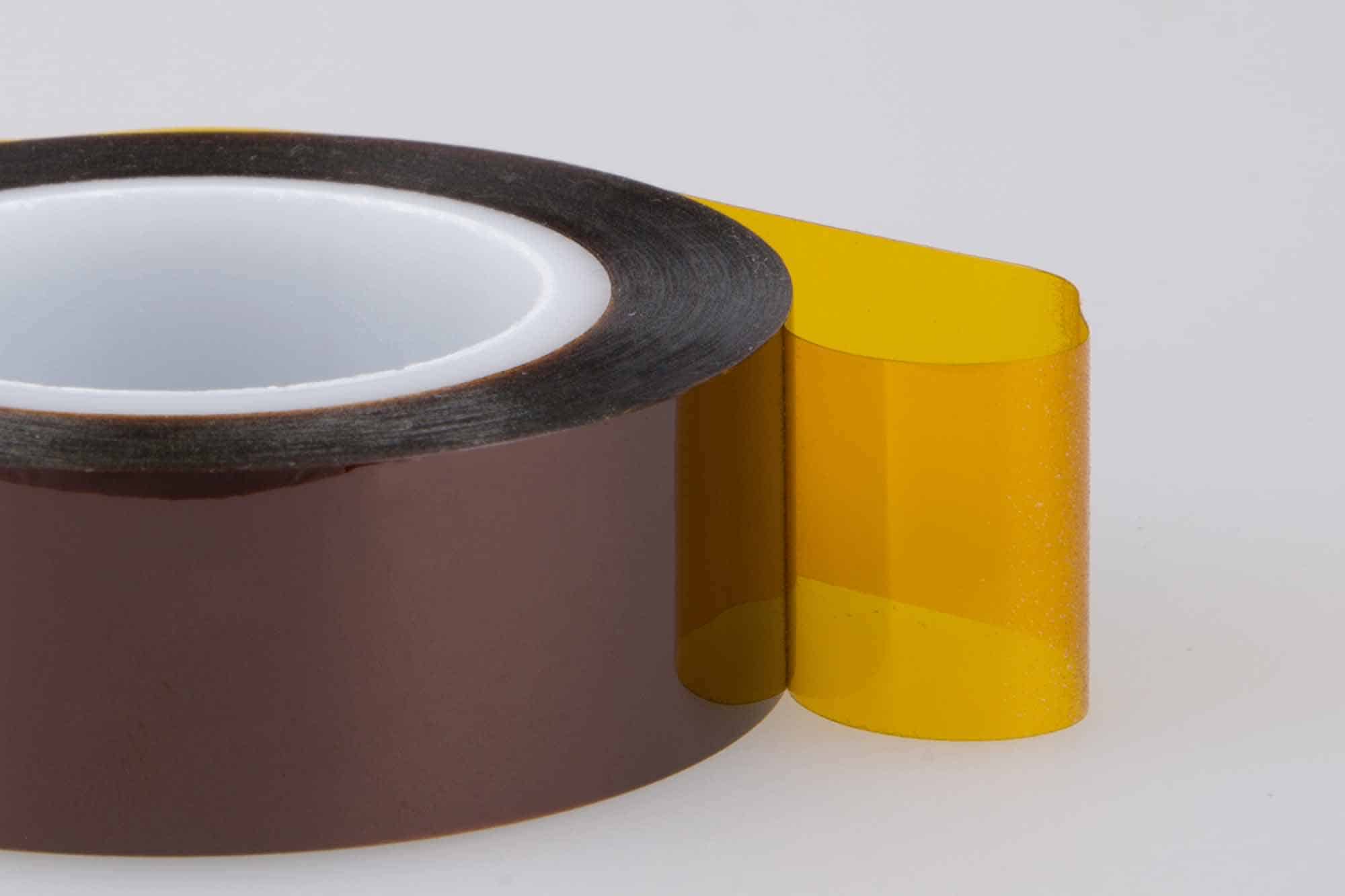

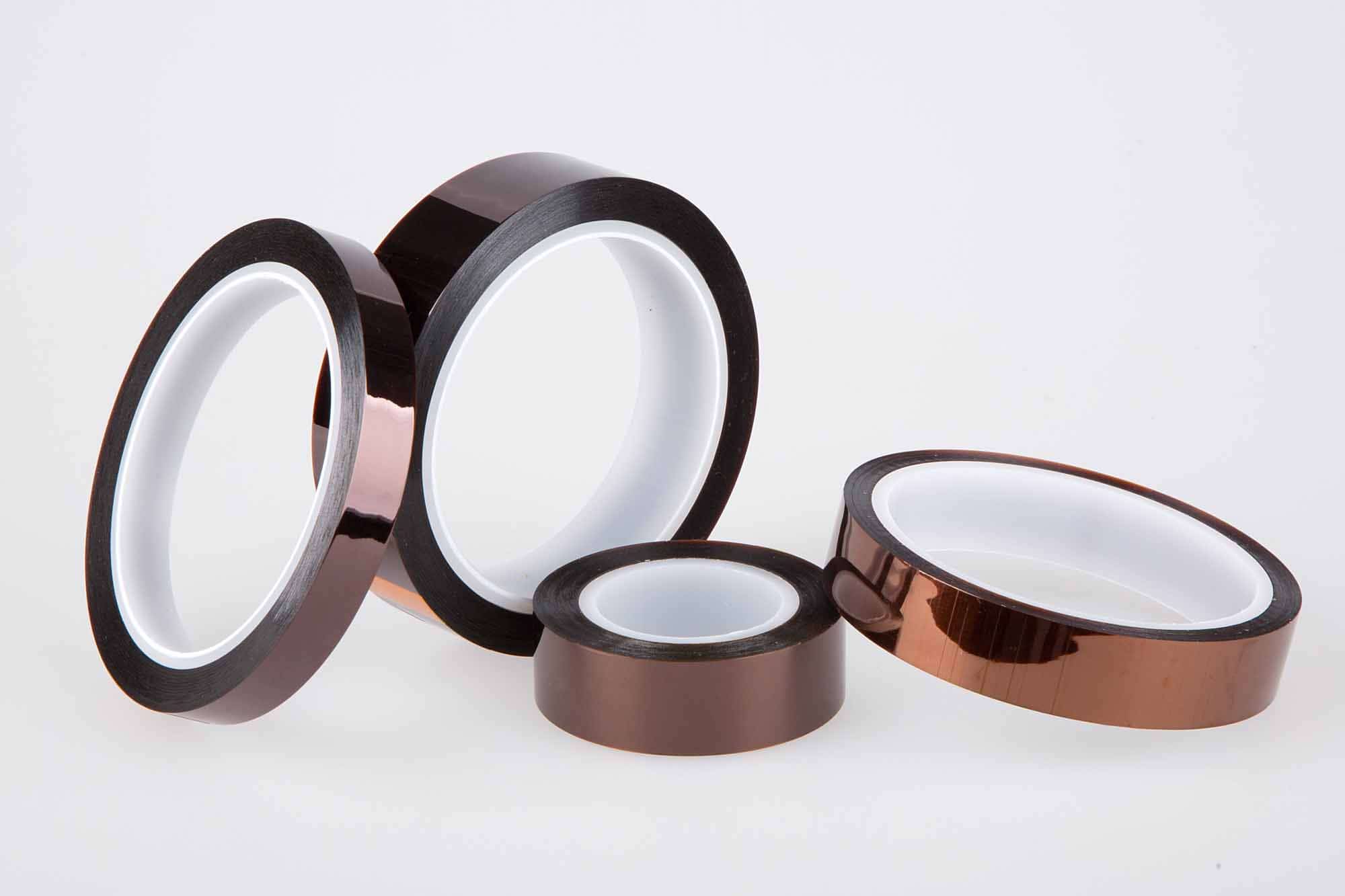

Polyimide Tape
Product description
Applications

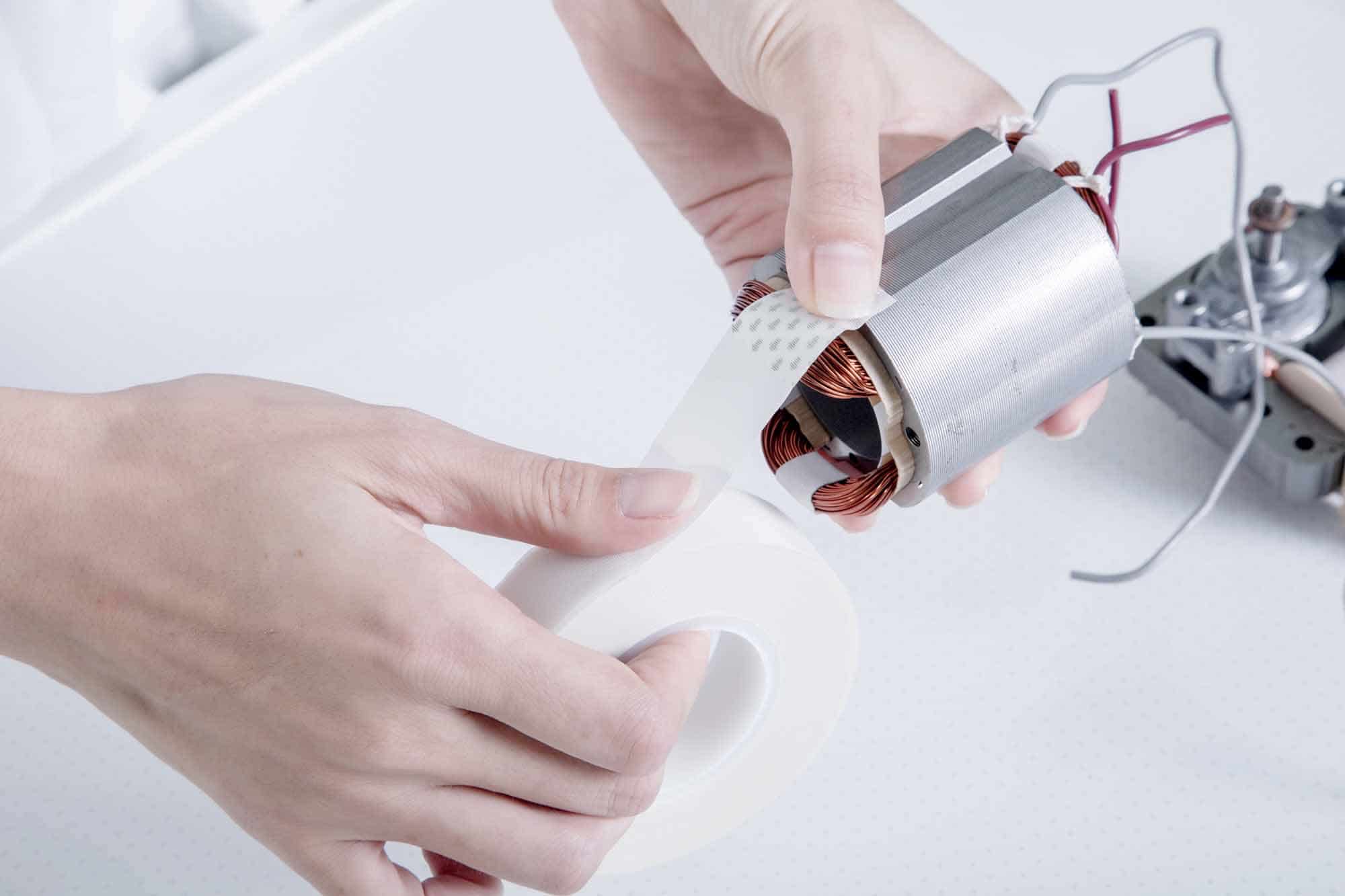

Motor insulation applications, transformer coil wrapping.
J-6240 Thin
Color: Golden
Thickness: 0.055mm
Tensile Strength: 40 N/10mm
Temperature Resistance: 155°C
Length: 36 Yards
Thickness: 0.055mm
Tensile Strength: 40 N/10mm
Temperature Resistance: 155°C
Length: 36 Yards
Adhesives: Acrylic
Adhesion: 6.5 N/25mm
Breaking Elongation: 100%
Voltage Resistance: 4 KV
UL Certified: /
Adhesion: 6.5 N/25mm
Breaking Elongation: 100%
Voltage Resistance: 4 KV
UL Certified: /
J-6240 Thick
Color: Golden
Thickness: 0.08mm
Tensile Strength: 80 N/10mm
Temperature Resistance: 155°C
Length: 22 Yards
Thickness: 0.08mm
Tensile Strength: 80 N/10mm
Temperature Resistance: 155°C
Length: 22 Yards
Adhesives: Acrylic
Adhesion: 7.5 N/25mm
Breaking Elongation: 100%
Voltage Resistance: 5 KV
UL Certified: /
Adhesion: 7.5 N/25mm
Breaking Elongation: 100%
Voltage Resistance: 5 KV
UL Certified: /
J-6250
Color: Golden
Thickness: 0.06mm
Tensile Strength: 40 N/10mm
Temperature Resistance: 200°C
Length: 36 Yards
Thickness: 0.06mm
Tensile Strength: 40 N/10mm
Temperature Resistance: 200°C
Length: 36 Yards
Adhesives: Silica Gel
Adhesion: 5.7 N/25mm
Breaking Elongation: 120%
Voltage Resistance: 4 KV
UL Certified: Yes
Adhesion: 5.7 N/25mm
Breaking Elongation: 120%
Voltage Resistance: 4 KV
UL Certified: Yes
※The data provided in the table are the result obtained under general conditions and serve only as the guideline for purchase.
| Item | Color | Adhesives | Thickness | Adhesion | Tensile Strength |
|---|---|---|---|---|---|
| J-6240 Thin | Golden | Acrylic | 0.055mm | 6.5 N/25mm | 40 N/10mm |
| J-6240 Thick | Golden | Acrylic | 0.08mm | 7.5 N/25mm | 80 N/10mm |
| J-6250 | Golden | Silica Gel | 0.06mm | 5.7 N/25mm | 40 N/10mm |
| Item | Breaking Elongation | Temperature Resistance | Voltage Resistance | Length | UL Certified |
|---|---|---|---|---|---|
| J-6240 Thin | 100% | 155°C | 4 KV | 36 Yards | / |
| J-6240 Thick | 100% | 155°C | 5 KV | 22 Yards | / |
| J-6250 | 120% | 200°C | 4 KV | 36 Yards | Yes |
※The data provided in the table are the result obtained under general conditions and serve only as the guideline for purchase.
Product Applications
